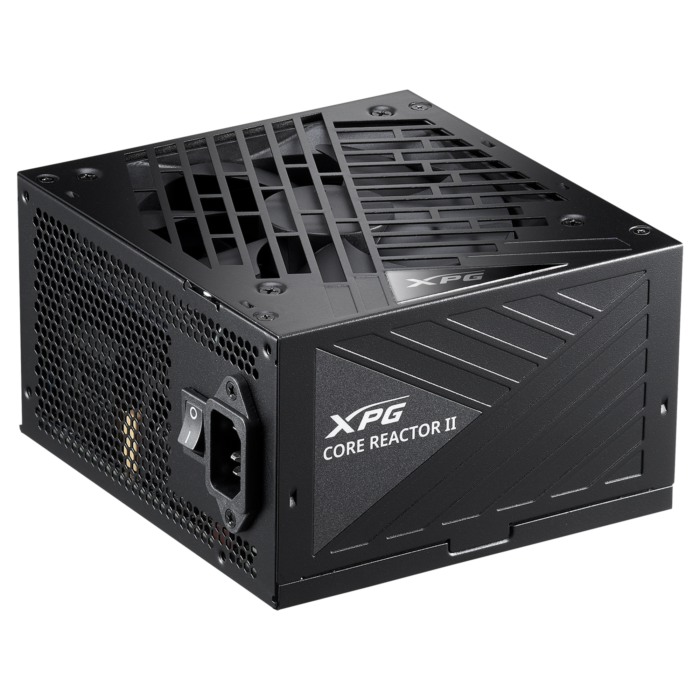

XPG 750W GOLD VE COREREACTOR II Gaming Power Supply MODULAR | NEW

650W-850W: 140 x 150 x 86mm
1000W-1200W: 160 x 150 x 86mm

1200W: PLATINUM
1000W: PLATINUM
850W: PLATINUM
750W: PLATINUM
650W: PLATINUM

GOLD

ATX 3.0 & ATX 3.1

OCP | OVP | OPP | OTP | UVP | SCP | NLO | SIP

CE | CB| FCC(IC) | TUV | cTUVus | TUV S-Mark | NOM | BSMI | UKCA | EAC | CCC | RCM

> 0.99

100-240V

1200W: 15A
1000W: 13A
850W: 12A
750W: 10A
650W: 10A

650/750/850/1000/1200W:47Hz-63Hz

+5V | +3.3V | +12V | -12V | +5Vsb

1200W: +5V/+3.3V :22A, +12V:100A, -12V:0.3A, +5Vsb:3A
1000W: +5V/+3.3V :22A, +12V:83.5A, -12V:0.3A, +5Vsb:3A
850W: +5V/+3.3V :22A, +12V:70.8A, -12V:0.3A, +5Vsb:3A
750W: +5V/+3.3V :22A, +12V:62.5A, -12V:0.3A, +5Vsb:3A
650W: +5V/+3.3V :20A, +12V:54.1A, -12V:0.3A, +5Vsb:3A

1200W: 2820W(*up to 235% of the PSU’s rated power for 100μs)
1000W: 2350W(*up to 235% of the PSU’s rated power for 100μs)
850W: 1997W (*up to 235% of the PSU’s rated power for 100μs)
750W: 1762W (*up to 235% of the PSU’s rated power for 100μs)
650W: 1527W(*up to 235% of the PSU’s rated power for 100μs)

50°C

650W-850W: 120mm FDB Fan
1000W-1200W: 135mm FDB Fan

FDB (Fluid Dynamic Bearing)

2400 RPM

100K hours at full load

1200W/1000W:1
850W/750W/650W:1

1200W/1000W:2
850W/750W/650W:2

1200W/1000W:8
850W/750W:6
650W:4

1200W/1000W:3
850W/750W/650W:4

1200W/1000W/850W/750W: 1

650W:1

1200W/1000W:9
850W/750W/650W:8

1200W/1000W:
Product+cables：1.77kg+1.28kg
with Package:3.43kg
850W/750W:
Product+cables：1596g+1254g
with Package:3.1kg
650W:
Product+cables：1299g+1231g
with Package:2.78kg

1 Years
