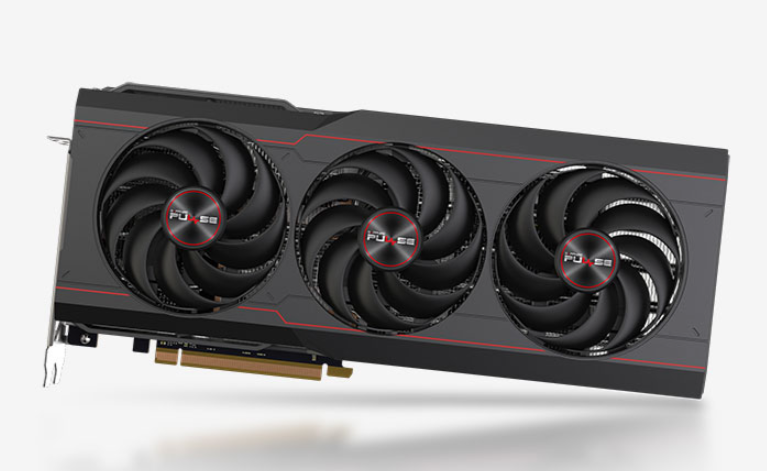

SAPPHIRE PULSE AMD Radeon™ RX 6800 XT 16GB DDR6 | PRE OWNED

Description

GPU
AMD Radeon™ RX 6800 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
Boost Clock: Up to 2310 MHz
Game Clock: Up to 2065 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
4608
Infinity Cache
128MB
Ray Accelerators
72
Memory Size/Bus
16GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI™: 7680×4320
DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0 x16

Output
1x HDMI
3x DisplayPort

BIOS Support
Dual UEFI
Game Index
4K

Sapphire Features
Dual BIOS
Digital Power Design
Fuse Protection
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™ 2.1 VRR
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
High Performance 4K Gaming
Cooler Type
3 Fans

Form Factor
2.7 slot, ATX
Dimension: 313(L)X 134.8(W)X 53.4 (H)mm
Power Consumption
350W
OS
Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement
Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
